Cessna IPC Figure 1

SEALANT-CATALYTIC

Cessna 172 (1963–1974) — Illustrated Parts Catalog

1 Figure No.
4 Parts
4 Assemblies
0 Sub-parts
IPC Page 72

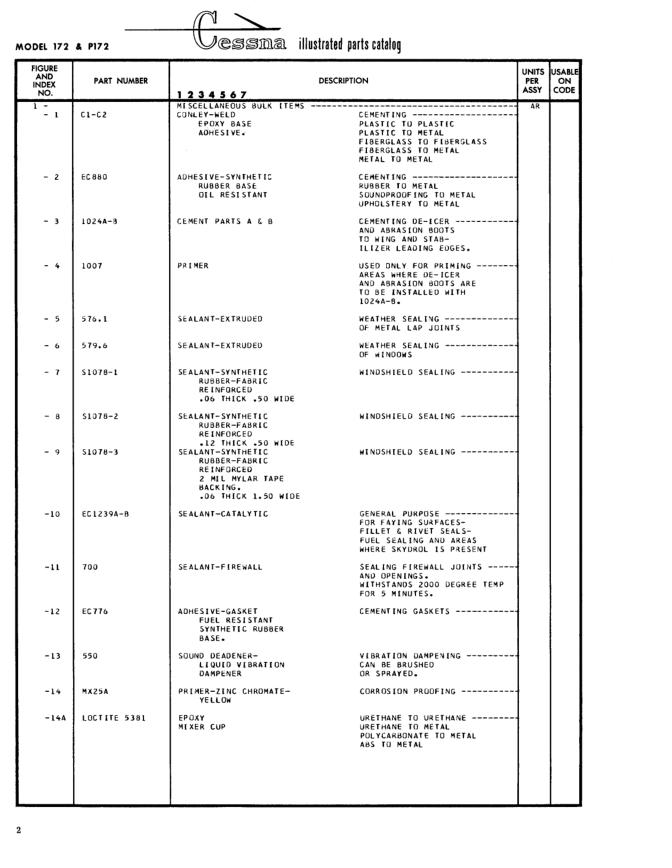

Figure 1 — SEALANT-CATALYTIC (IPC page 72)
Parts List — Figure 1
Item Part Number Description Qty Code IPC Pg
-10 EC1239A-B SEALANT-CATALYTIC AR — 72
-9 S1078-3 SEALANT-SYNTHETIC RUBBER-FABRIC REINFORCED 2 MIL MYLAR TAPE BACKING .06 THICK 1.50 WIDE AR — 72
-8 S1078-2 SEALANT-SYNTHETIC RUBBER-FABRIC REINFORCED .12 THICK .50 WIDE AR — 72
-7 S1078-1 SEALANT-SYNTHETIC RUBBER-FABRIC REINFORCED .06 THICK .50 WIDE AR — 72
