IPC Page 517

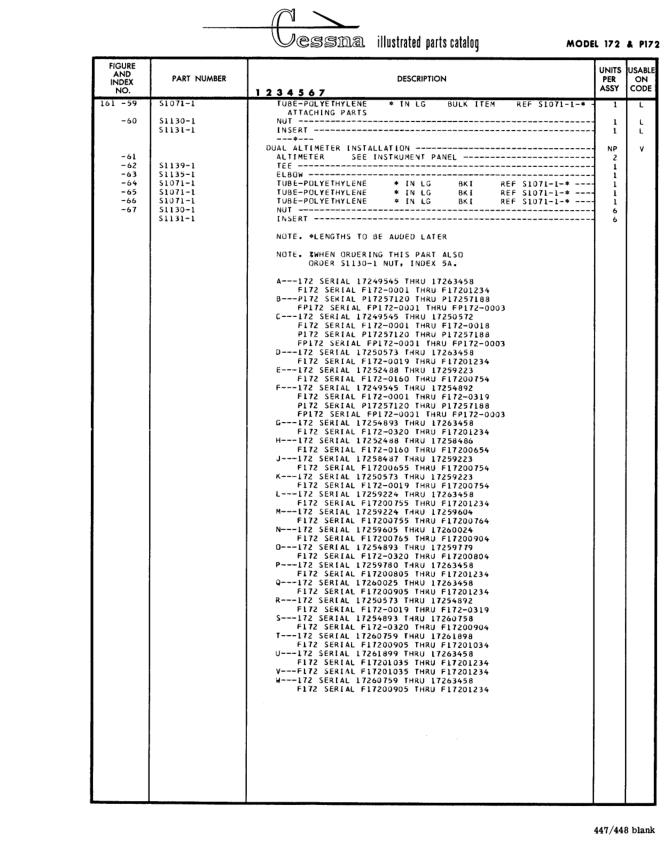

Parts List — Figure 161
| Item | Part Number | Description | Qty | Code | IPC Pg |
|---|---|---|---|---|---|
| -67 | S1130-1 | NUT | 6 | — | 517 |
| -67 | S1131-1 | INSERT | 6 | — | 517 |
| -66 | S1071-1 | TUBE-POLYETHYLENE | 1 | BK1 | 517 |
| -65 | S1071-1 | TUBE-POLYETHYLENE | 1 | BK1 | 517 |
| -64 | S1071-1 | TUBE-POLYETHYLENE | 1 | BK1 | 517 |
| -63 | S1135-1 | ELBOW | 1 | — | 517 |
| -62 | S1139-1 | TEE | 1 | — | 517 |
| -60 | S1130-1 | NUT | 1 | L | 517 |
| -60 | S1131-1 | INSERT | 1 | L | 517 |
| -59 | S1071-1 | TUBE-POLYETHYLENE ATTACHING PARTS | 1 | L | 517 |
