Cessna IPC Figure 18

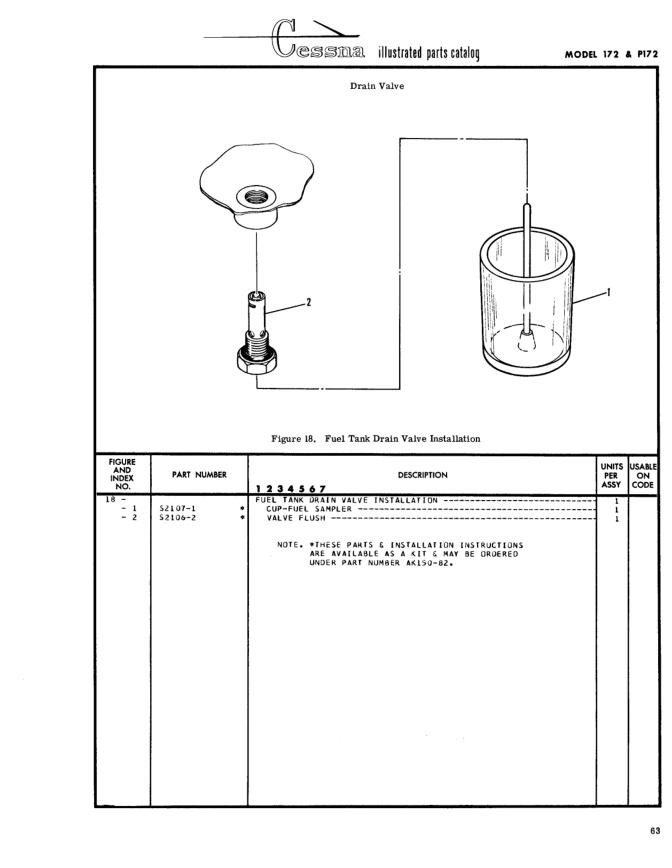

FUEL TANK DRAIN VALVE INSTALLATION

Cessna 172 (1963–1974) — Illustrated Parts Catalog

18 Figure No.

3 Parts

3 Assemblies

0 Sub-parts

IPC Page 133

Parts List — Figure 18

Item	Part Number	Description	Qty	Code	IPC Pg
-	52107-1	FUEL TANK DRAIN VALVE INSTALLATION	1	—	133
-2	52106-2	VALVE FLUSH	1	—	133
-1	52107-1	CUP-FUEL SAMPLER	1	—	133
