Cessna Cessna 172 (1963–1974) Inspect if used

0511240-2

SEAT RAIL-OUTBOARD LH

1 Qty / Assembly
1 Aircraft
Fig. 29–-16 IPC Reference
159 IPC Page
About this part

Part number 0511240-2 is a SEAT RAIL-OUTBOARD LH used in the Cessna 172 (1963–1974), illustrated in Figure 29 (Item -16) on IPC page 159. Verify condition and airworthiness before installation.

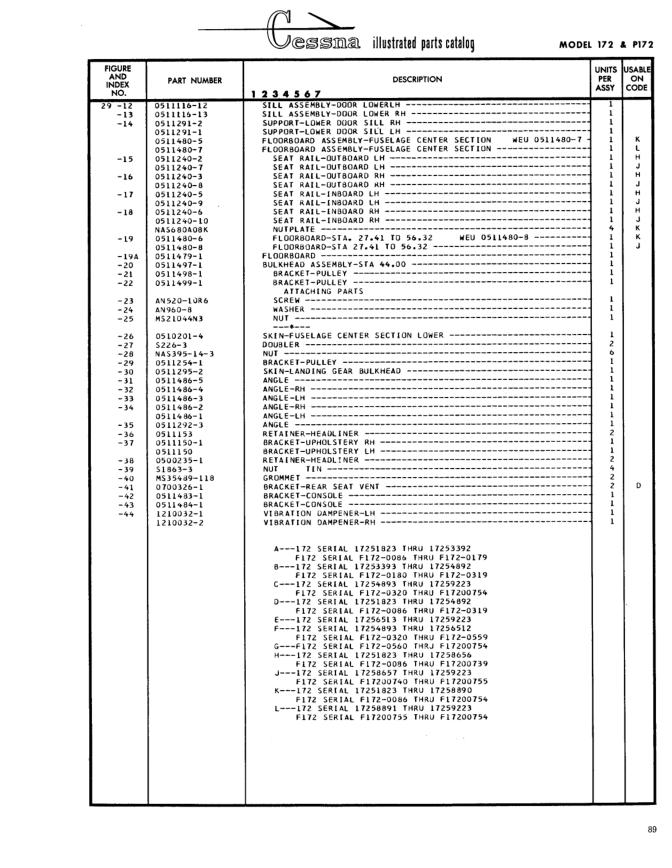

IPC Diagram — Page 159
Illustrated parts diagram for 0511240-2 (SEAT RAIL-OUTBOARD LH), IPC page 159
Part Specifications
Part Number0511240-2
DescriptionSEAT RAIL-OUTBOARD LH
Qty per Assembly1
Applicability
H
Aircraft Cessna 172 (1963–1974)
IPC Page159
Figure / Item Fig. 29 — Item -16 View all parts in this figure →
Buying Advice
Inspect if used

Verify condition and airworthiness before installation.

Where to Buy
Find on eBay Find on Amazon
Related Parts — 0511240 Family
0511240-70511240-30511240-80511240-50511240-90511240-6

View all 0511240 variants →

Also on IPC Page 159
0511116-12 SILL ASSEMBLY-DOOR LOWER LH 0511116-13 SILL ASSEMBLY-DOOR LOWER RH 0511291-2 SUPPORT-LOWER DOOR SILL RH 0511291-1 SUPPORT-LOWER DOOR SILL LH 0511480-5 FLOORBOARD ASSEMBLY-FUSELAGE CENTER SECTION 0511480-7 FLOORBOARD ASSEMBLY-FUSELAGE CENTER SECTION 0511240-7 SEAT RAIL-OUTBOARD LH 0511240-3 SEAT RAIL-OUTBOARD RH
