Cessna Cessna 172 (1963–1974) Inspect if used

0513315-1

BULKHEAD-TUNNEL REINFORCEMENT

1 Qty / Assembly
1 Aircraft
Fig. 36–-4 IPC Reference
179 IPC Page
About this part

Part number 0513315-1 is a BULKHEAD-TUNNEL REINFORCEMENT used in the Cessna 172 (1963–1974), illustrated in Figure 36 (Item -4) on IPC page 179. Verify condition and airworthiness before installation.

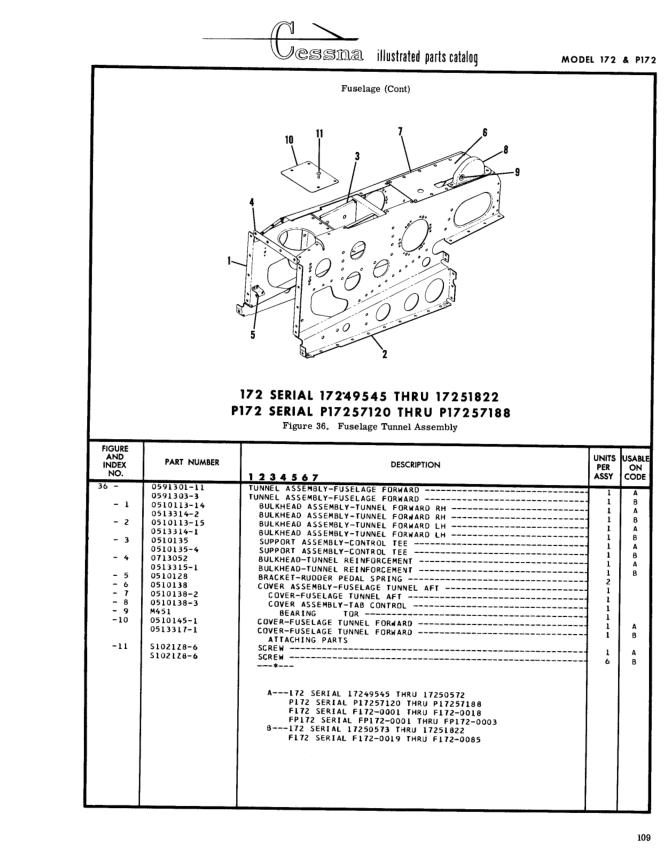

IPC Diagram — Page 179
Illustrated parts diagram for 0513315-1 (BULKHEAD-TUNNEL REINFORCEMENT), IPC page 179
Part Specifications
Part Number0513315-1
DescriptionBULKHEAD-TUNNEL REINFORCEMENT
Qty per Assembly1
Applicability
A
Aircraft Cessna 172 (1963–1974)
IPC Page179
Figure / Item Fig. 36 — Item -4 View all parts in this figure →
Buying Advice
Inspect if used

Verify condition and airworthiness before installation.

Where to Buy
Find on eBay Find on Amazon
Related Parts — 0513315 Family
0513315-5

View all 0513315 variants →

Also on IPC Page 179
0591301-11 0591303-3 TUNNEL ASSEMBLY-FUSELAGE FORWARD 0510113-14 0513314-2 BULKHEAD ASSEMBLY-TUNNEL FORWARD RH 0510113-15 0513314-1 BULKHEAD ASSEMBLY-TUNNEL FORWARD LH 0510138-3 M45 COVER ASSEMBLY-TAB CONTROL BEARING TOR 0510145-1 COVER-FUSELAGE TUNNEL FORWARD 0513317-1 COVER-FUSELAGE TUNNEL FORWARD ATTACHING PARTS S1021Z8-6 S1021Z8-6 SCREW
